3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines

3kw servo motor edge polisher

acrylic edge polisher for PMMA

1350mm plastic polishing machine

Lugar de origen:

Guangdong, China

Nombre de la marca:

SAIDEX

Certificación:

CE

Número de modelo:

SD-1350FX

Éntrenos en contacto con
Solicitar una cita
Detalles del producto
Tamaño pulible:
1350 mm (largo) x 120 mm (profundidad)
Uso:
Pulido de borde acrílico
Peso:
1000 kg
Tipo de equipo:
Máquina de pulido acrílico
Embalaje:
Caja de madera
Amgle cortante:
0-60 °
Actual:
10-16a
velocidad:
Entre 6000 y 12000 RPM
Material de la rueda de pulido:
Acrílico, PC, PS, PE, materiales aislantes
Color:
Claro
Duración del pulido:
1350 mm
Velocidad de la rueda de pulido:
6000 rpm
Ángulo de corte:
0-60 °
Fuerza:
3kw
Garantía:
un año
Resaltar:

3kw servo motor edge polisher

,

acrylic edge polisher for PMMA

,

1350mm plastic polishing machine

Pago y términos de envío
Cantidad de orden mínima
1 juego
Precio
Confirm price based on product
Detalles de empaquetado
1p/ Caja de papel
Tiempo de entrega
ser negociado
Condiciones de pago
T/T
Capacidad de la fuente
10000 conjuntos/conjuntos por mes
Descripción de producto





Arcylic polisher:

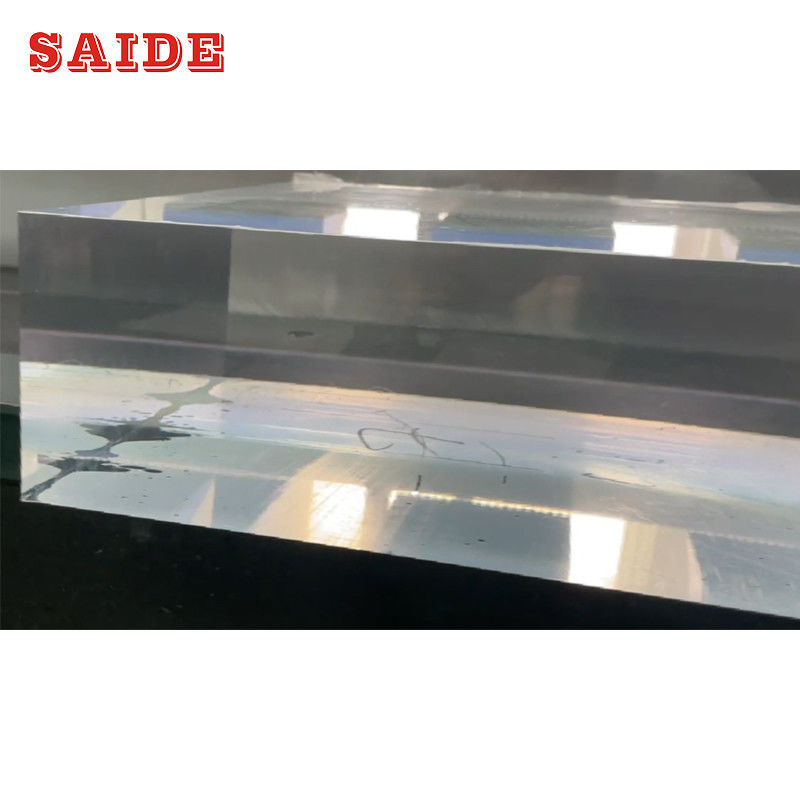

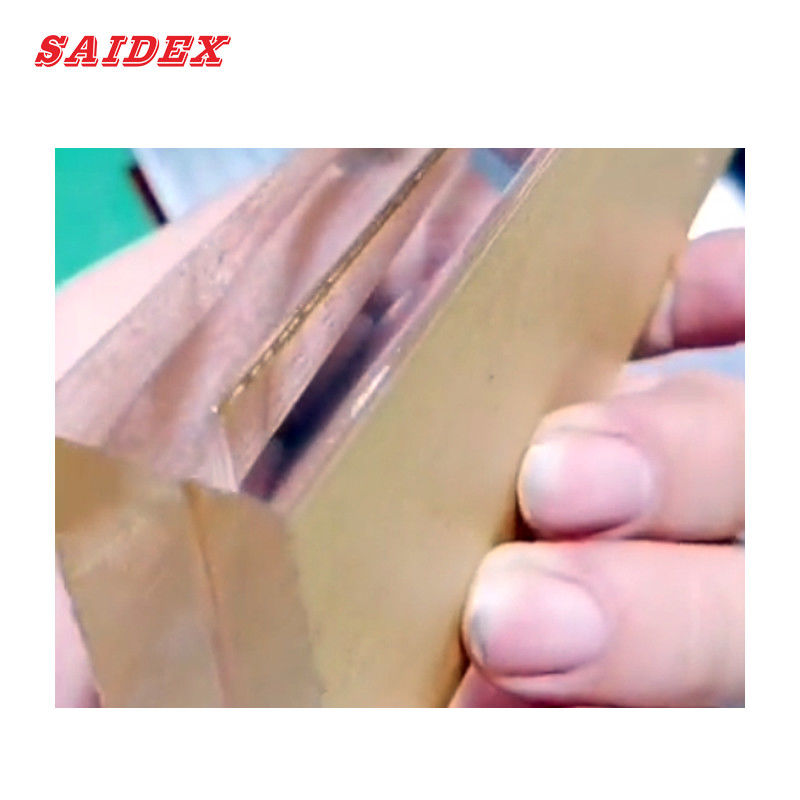

Acrylic polishing machine is a machine that uses the polishing knifes to cut and polish the edges of acrylic,it can achieves a mirror-like finish, providing unparalleled flatness and crystal-clear brilliance.



Widely used in acrylic, PMMA, PS, PC, PET, PE and other plastic plates and products sanding and polishing.

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 03kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 13kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 23kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 3

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 43kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 53kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 6

Product Features:

1.The main structure ofthe natural marble,which isfeatured with strong stability, effectively avoidinothe easy deformation ofiron casting;

2.Servo motor drive, can achieve high speed, high precision positioning control ;

3.The processing speed is quick,and it can reach 2 meters per minute,and the reset speed, up to 30meters per minute ;

4.No adiustment, fast installation,accurate adjustment,the tooi is directly installed in place,without adiustment.simple operation and fast material claming;

5.Infinite circular process(it can be reprocessed withoutstandby);With safety protection device;

6.With safety protection device.



Unit Type SD-1350FX
Machine Size 1900mm(L) x1080mm(W) x 1500mm(H)
Power Supply AC380
Work Area 1350mm(L) x120mm(T) (extensible)
Spindle Speed 6000-12000rpm
Processing Speed 0-2m/min
Cutting angle 0-60°
Air pressure input ≥0.5mpa
Machine power 3kw
Processing straight line accuray 0.03mm
Processing way Servo motor feeding
Dust collector pipe Dia φ100mm
Machine Wight 1000kg

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 73kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 83kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 9

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 103kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 113kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 123kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 13

3kw Servo Motor Driven 1350mm Acrylic Edge Polisher PMMA/PS/PCPlastic Polishing Machines 14

About US:



Dongguan saide electromechanical equipment Co.,LTD.-is manufacturer specializing in the development and production Special processing acrylic plastic, insulating material equipment(PMMA,PS,MS,PE,PET,PC,PP,ABS,Bakelite, Epoxy Board) and acrylic processing tools.Years of actual production experience,frst-class service and professional technology have enable our company inthe leading position in the industry since its establishment in2008.



The company in line with "the quality first,the customer is supreme","excellent quality,reasonable price,honest trades has won high praise and the approval,and beloved by the domestic and overseas customers.The company adheres to the principle of"our efforts,customers benefit",we sincerely to provide satisfactory products and services with professional standards and unremitting efforts.



Our products have been exported to United States,Canada,Germany,France,Italy,Saudi Arabia,UAE,India,Singapore,Thailand,Indonesia,South Korea,Japan etc countries.
